PRODUCTION AND SALES

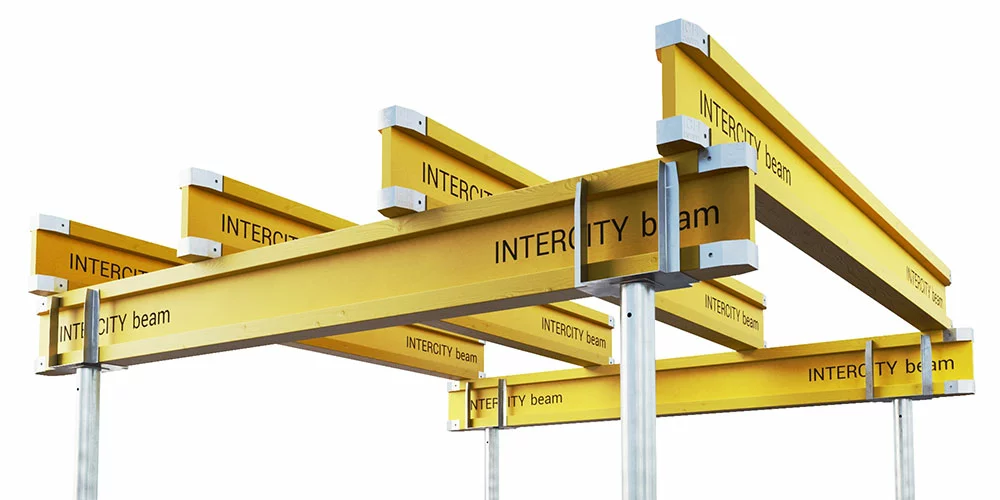

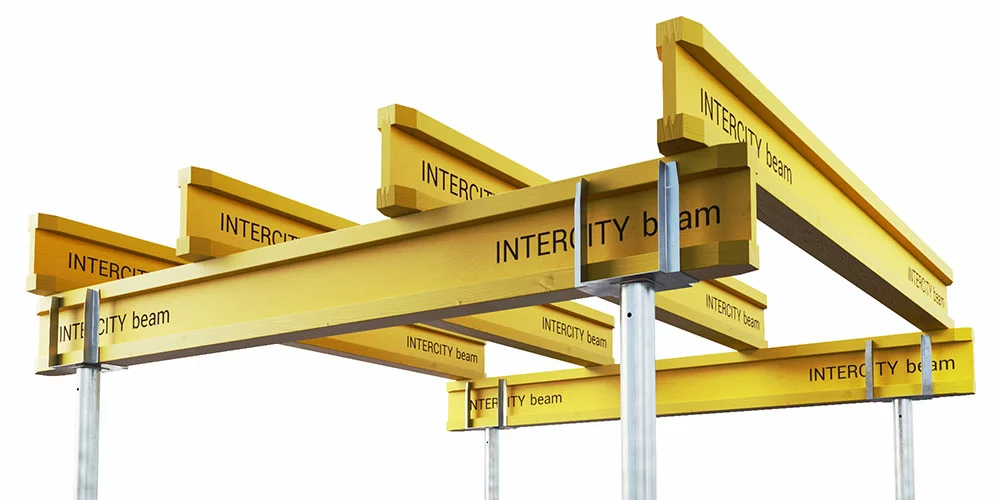

wooden H-beams for monolith formwork

Type 1 ICH-200P
  • Flanges  - wooden bar 80x40 mm
  • Web - plywood 24 mm
  • Tips protection - none

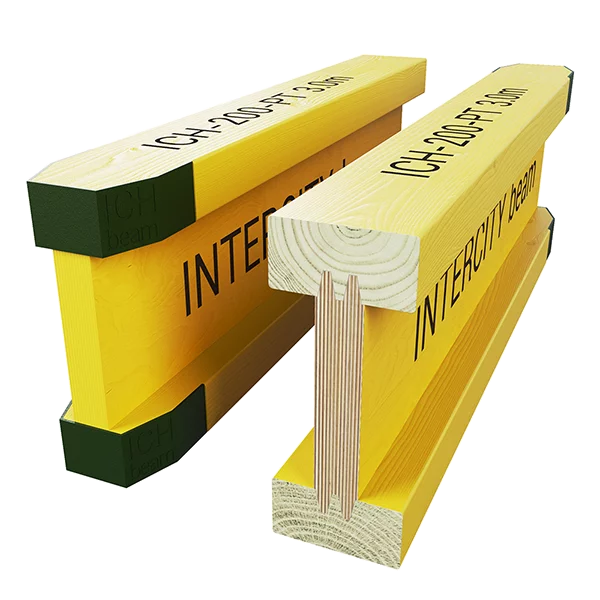

Type 2 ICH-200-PT
  • Flanges - wooden bar 80x40 mm
  • Стойка - plywood 24 mm
  • Tips protection - plastic caps
Type 3 ICH-200-LT
  • Flanges  - wooden bar 80x40 mm
  • Web - solid LVL 24 mm
  • Tips protection - metal caps

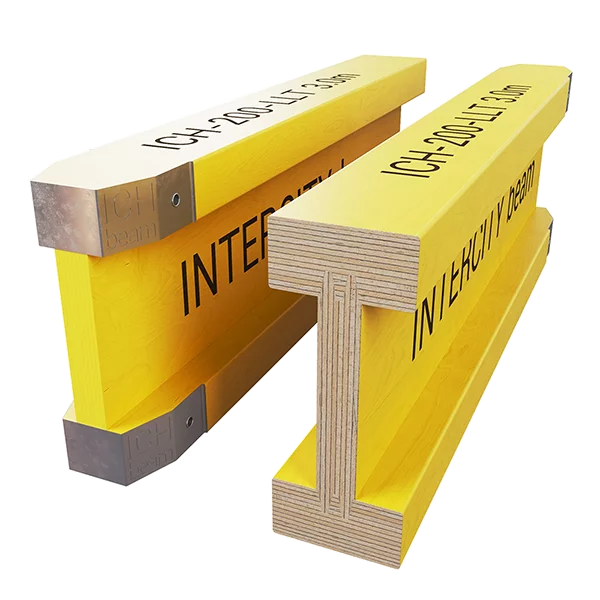

Type 4 ICH-200-LLT
  • Flanges -solid LVL timber 80x36 mm
  • Web - solid LVL 27 mm
  • Tips protection - metal caps
To order, please contact us: +7 495 105 91 63
order a call back
Or write to e-mail: info@enter-city.ru
We are manufacturers
of wooden H-beams for monolith formwork
We produce the best beams
for the Russian and foreign markets Always export quality
BASF adhesive systems
We use only specialized glue
We offer special conditions
for regular and large customers
Products are certified
Tests were carried out and a production permit was obtained
We have been working since 2011
The plant is located in Russia in the Moscow region

OUR PRODUCTS

Type 1
ICH-200-P
Type 2
ICH-200-PT
Type 3
ICH-200-LT
Type 4
ICH-200-LLT
section parameters

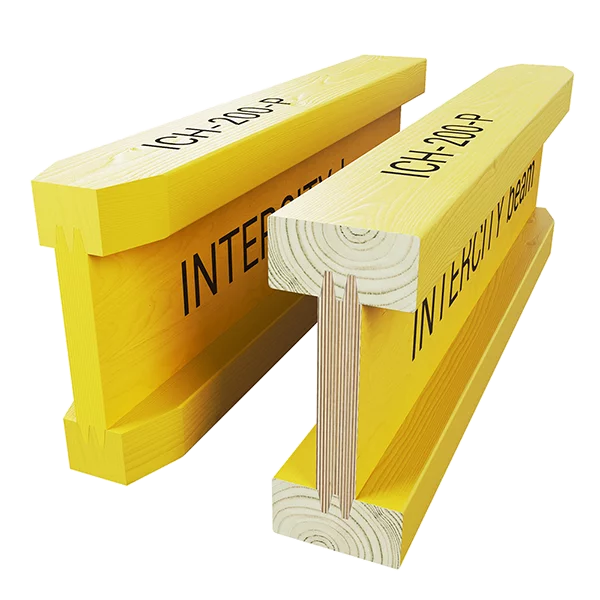

H-beam ICH-200-P
Рrotective coating -
weatherproof
acrylic paint-antiseptic
Web-
moisture-resistant plywood 24 mm
Flanges -
wooden bars 40х80 mm
Tips protection: none
Two-component adhesive for load-bearing structures BASF (Germany). Lengths: 1,45 m; 2,0 m, 2,9 m; 3,0 m; 3,9 m; 5,0 m; 5,9 m; other on request
Price: 6 € / l.m
To order
section parameters
H-beam ICH-200-PT
Рrotective coating -
weatherproof
acrylic paint-antiseptic
Web-
moisture-resistant plywood 27 mm
Flanges -
wooden bars 40х80 mm
Tips protection: plastic caps
Two-component adhesive for load-bearing structures BASF (Germany). Lengths: 1,45 m; 2,0 m, 2,9 m; 3,0 m; 3,9 m; 5,0 m; 5,9 m; other on request
Price: 6,2 € / l.m
To order
section parameters

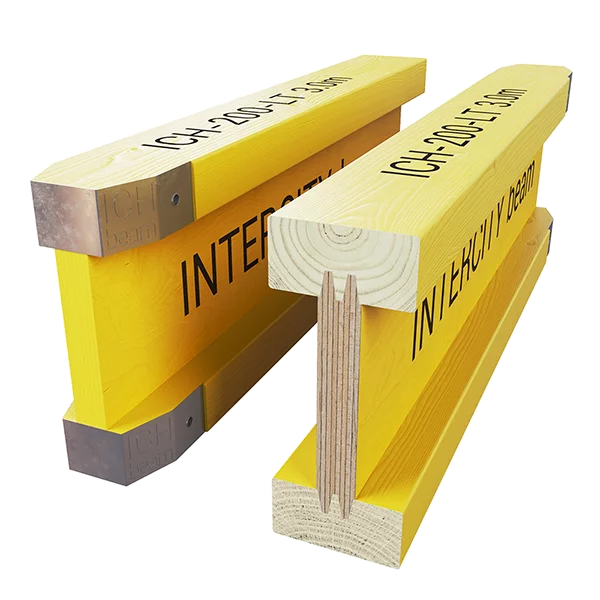

H-beam ICH-200-PL
Рrotective coating -
weatherproof
acrylic paint-antiseptic
Web-
solid LVL timber 24 mm
Flanges -
wooden bars 40х80 mm
Tips protection: metal caps
Two-component adhesive for load-bearing structures BASF (Germany). Lengths: 1,45 m; 2,0 m, 2,9 m; 3,0 m; 3,9 m; 5,0 m; 5,9 m; other on request
Price: 6,4 € / l.m
To order
section parameters
H-beam ICH-200-LLT
Рrotective coating -
weatherproof
acrylic paint-antiseptic
Web-
solid LVL 24 mm
Flanges -
solid LVL timber 36х80 mm
Tips protection: metal caps
Two-component adhesive for load-bearing structures BASF (Germany). Lengths: 1,45 m; 2,0 m, 2,9 m; 3,0 m; 3,9 m; 5,0 m; 5,9 m; other on request
Price: 6,8 € / l.m
To order

Prices and components

Specifications
Type 1
ICH-200-P
Type 2
ICH-200-PT
Type 3
ICH-200-LT
Type 4
ICH-200-LLT
Flanges:
Spruce or pine
Spruce or pine
Spruce or pine
LVL lumber
Section of flanges:
40х80 mm
40х80 mm
40х80 mm
36х80 mm
The integrity of flanges:
Jointed
Jointed
Jointed
Solid
Material of flanges:
Plywood
Plywood
LVL limber
LVL limber
The thickness of web:
24 mm
27 mm
24 mm
24 mm
The integrity of web:
Jointed
Jointed
Solid
Solid
Клей:
Two-component adhesive BASF (Germany) for power structures
Protective staining:
Weather-resistant acrylic paint-antiseptic
Protection of tips:
none
Plastic
Metal
Metal
To order, please contact us: +7 495 105 91 63
order a call back
Or write to e-mail info@enter-city.ru

Certificates and tests

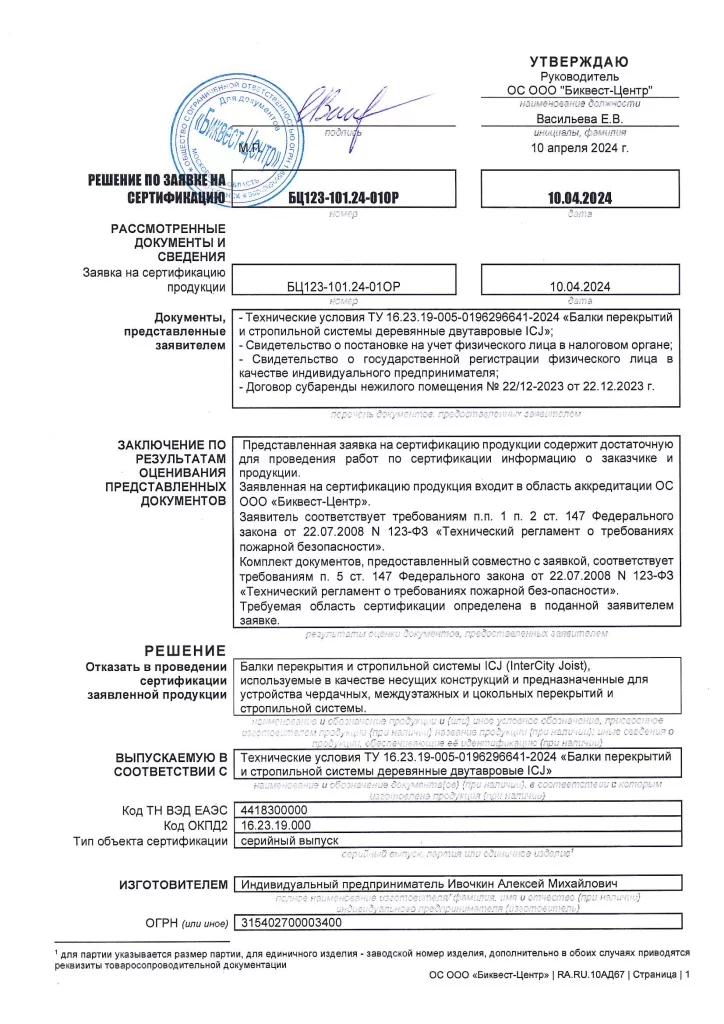

Expert evaluation

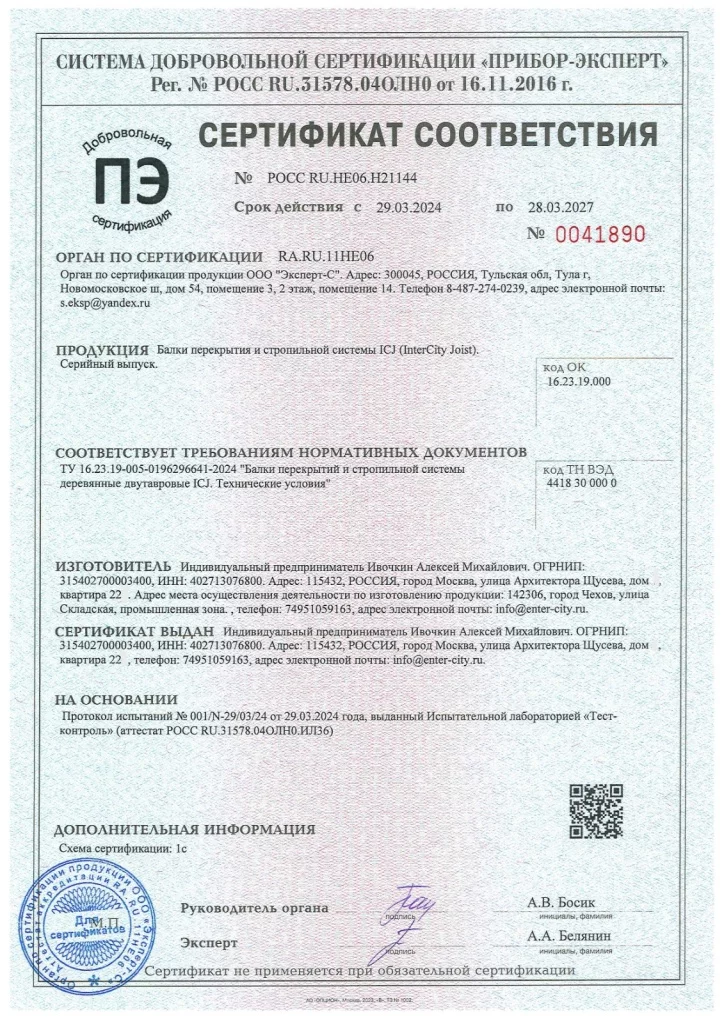

Certificate of Conformity

Physical and mechanical characteristics

Name
Flanges
Web
Weight, kg/m.l
Jx, cm4
Jу, cm4
Wx, cm3
Wy, cm3
Е, MPa
EJx
H-beam ICH - 200 - P
80х40 mm
24 mm
4,2
4526,93
355,16
452,69
88,79
9000
40742
H-beam ICH - 200 - PT
80х40 mm
27 mm
4,4
4570,13
361,02
457,01
90,25
9000
41131
H-beam ICH - 200 - LT
80х40 mm
LVL 24 mm
4,6
4526,93
355,16
452,69
88,79
10500
47533
H-beam ICH - 200 - LLT
LVL 80х36 mm
LVL 24 mm
5,1
4354,66
321,95
435,47
80,49
12000
52256
